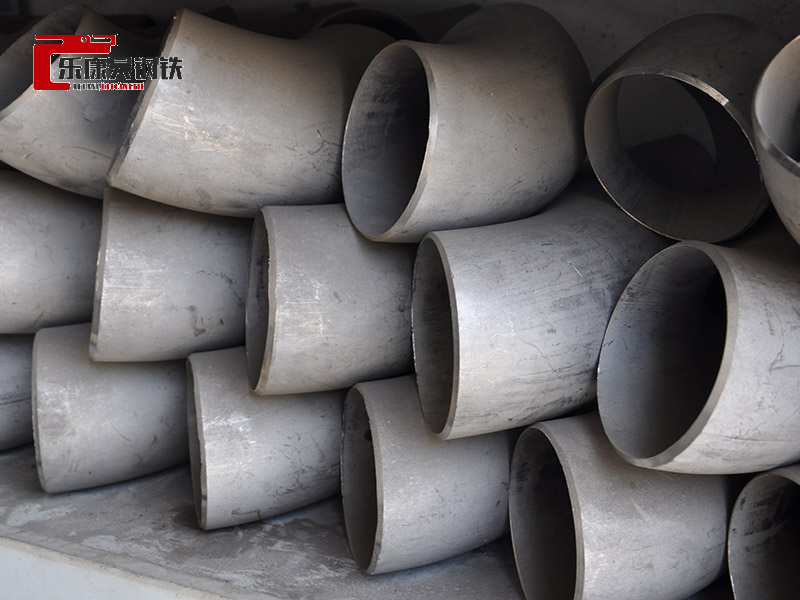

45 ° Stainless Steel Elbow

Phone : +86 15306192358

Email : buxiugang@steel-export.com

Wechat : +86 15306192358

Whatsapp : +86 15306192358

Product Description

In the pipeline system, the pipe elbow is a pipe fitting that changes the direction of the pipeline. According to the angle, there are three most commonly used ones: 45°, 90°, and 180°. In addition, according to engineering needs, it also includes other abnormal angle elbows such as 60°.It has a better hardness and machinability with a variety of metal content,such as Mn,Cu and Mo.

Product Name	Stainless steel elbow
Surface	pickle sand, polished，Black paint, Antirust oli, Primary Color
Grade	410，430，201，304，304L，321，316，316L，317L，347H，309S，310S，904L，S32205，2507，254SMOS，32760，253MA，N08926，etc.
Grade	1.4301，1.4307，1.4541，1.4401，1.4404，1.4571，1.4438，1.4539，1.4547，1.4529，1.4562，1.4410，1.4878，1.4845，1.4828，1.4876，2.4858，2.4819
Thickness	0.1-150mm / SCH5-SCH160-SCHXXS
Diameter	1-1500mm
Standard	GB,AISI,ASTM,DIN,EN,SUS,UNS etc
Inspection	ISO,SGS,BV and so on.
Type	seamless elbow, welded elbow
Degree	45 degree, 90 degree, 180 degree
Payment	T/T L/C and Western Union etc
Packaging & Delivery	in bundle,plastic bags,thin film,wooden pallet,standard seaworthy export packing or as customer demands

SURFACE	CHARACTERISTIC	SUMMARY OF MANUFACTURING METHOD	APPLICATION
NO.1	Silvery white	Hot rolled to specified thickness	Do not need to have a glossy surface use
NO.1	lackluster	Hot rolled to specified thickness	Do not need to have a glossy surface use
NO.2D	Silvery white	After cold rolling, heat treatment and pickling are carried out	General material, deep material
NO.2B	Gloss is stronger than No.2D	After No.2D treatment, the final light cold rolling is carried out through the polishing roller	The general material
BA	As bright as a sixpence	No standard, but usually a bright annealed surface with high reflectivity.	Building materials, kitchen utensils
NO.3	Rough lapping	Grind with 100~200# (unit) strop tape	Building materials, kitchen utensils
NO.4	Intermediate grinding	Polished surface obtained by grinding with 150~180# strop abrasive tape	Building materials, kitchen utensils
NO.240	Fine lapping	Grinding with 240# strop abrasive tape	kitchenware
NO.320	Very fine grinding	Grinding was carried out with 320# strop abrasive tape	kitchenware
NO.400	The luster is close to BA	Use 400# polishing wheel to grind	General timber, building timber, kitchen appliances
HL	Hairline grinding	Suitable particle material for hair stripe grinding (150~240#) with many grains	Building, construction material
NO.7	It's close to mirror grinding	Use a 600# rotary polishing wheel to grind	For art or decoration
NO.8	Mirror ultrafinish	The mirror is ground with a polishing wheel	Reflector, for decoration
